e-bike

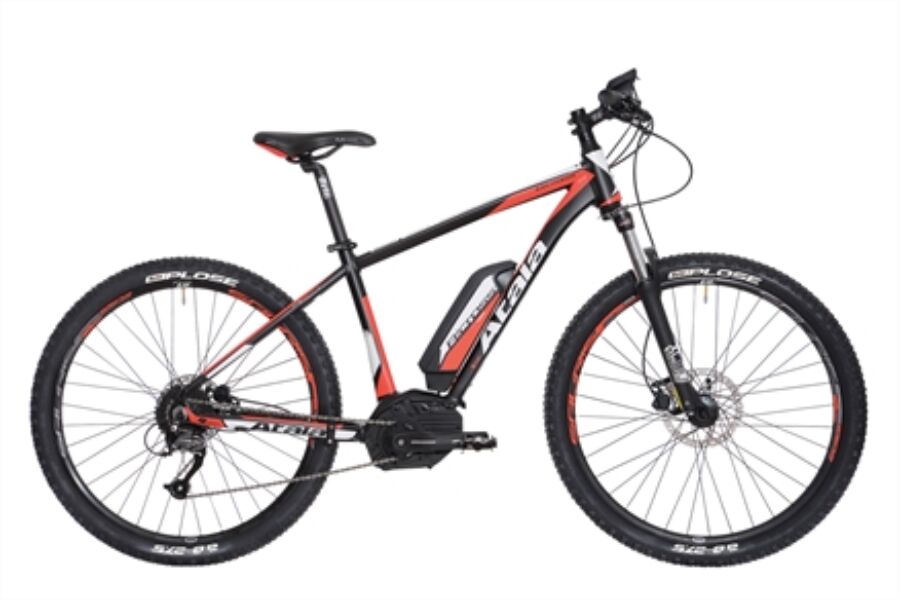

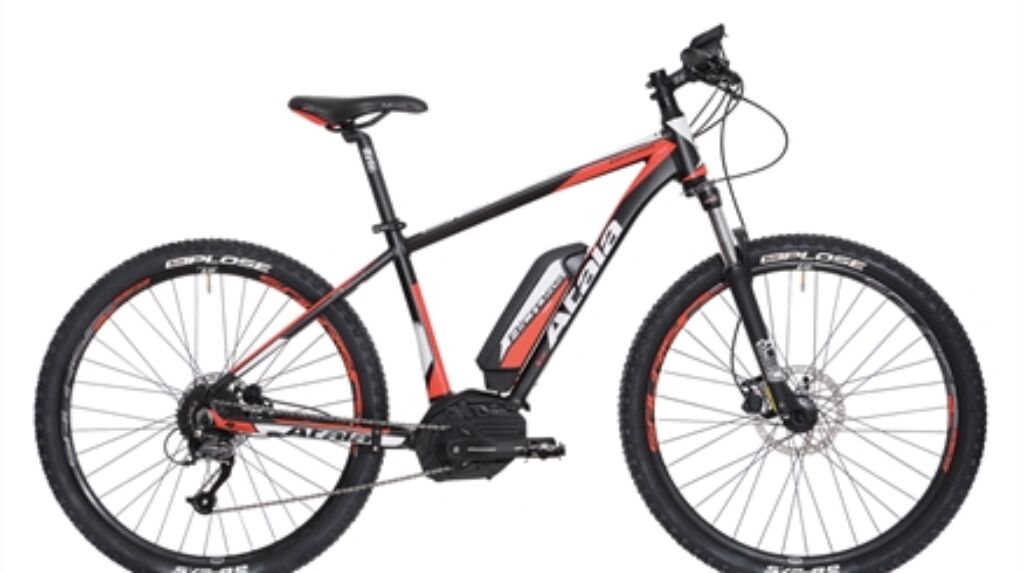

Atala B Cross Cx

Palermo Cycling: Atala B Cross Cx

E-MTB (4 assistance levels Bosh Bosch 36 V 250 W engine), available both 27,5″ and 29″ options. Equipped with front dampers, 9-speed shift, disc brakes, 400 Wh battery (up to 150 km).

Practical MTB ideal for off-road journeys and excursions, on unpaved roads or on non-technical paths. Perfect for rolling routes allowing to overcome challenging ascent.

FRAME Alu 29”, custom tubing, tapered 1”1/2 Head Tube, Post mount rear brake bracket, Internal Routing, Forged motor interface
FORK Suntour XCR32 RL-C, 100 mm travel, Remote Lockout
HEADSET FSA No.57BP ZS-1 for 1”1/8 steerer
CRANKSET Fsa Dyna Drive, Miche chain ring 15T

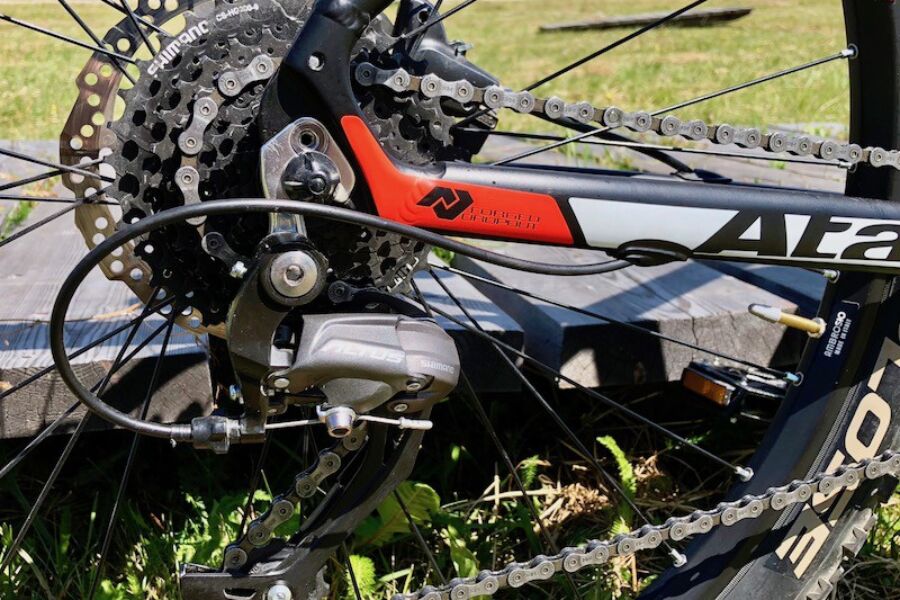

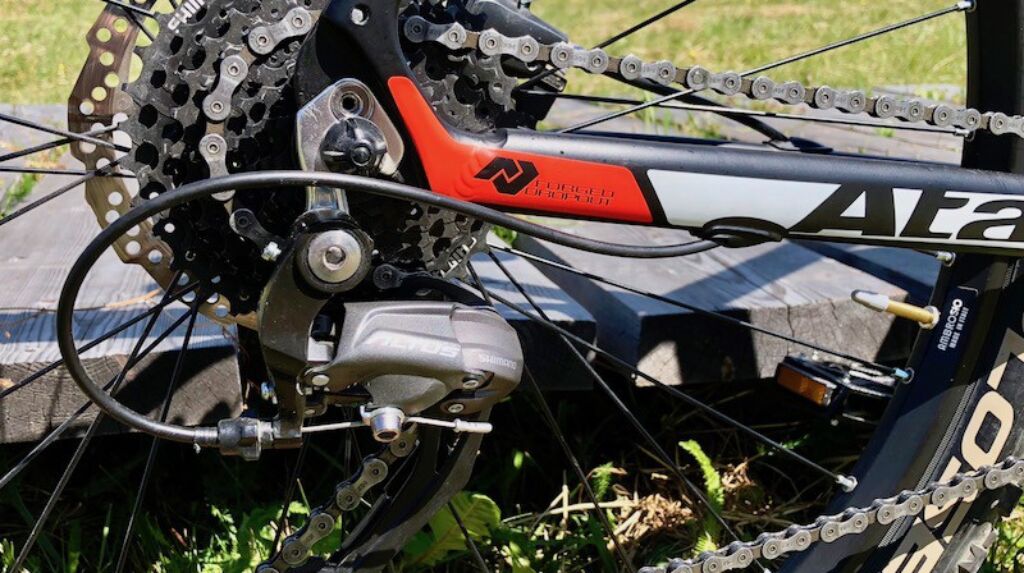

REAR DERAILLEUR Shimano Alivio RD-M4000 SGS
SHIFTERS LEVERS Shimano Altus SL-M370 Rapidfire, 9s
BRAKES Shimano BR-M315, Rotor SM-RT10 180 mm F / 180 mm R
CASSETTE Shimano CS-HG300 9s 12/36
PEDALS Alu MTB
HUBS Shimano TX505, CL, 32h
RIMS Ambrosio Crossover, 29”, 32h
STEM Byte Alu Oversize, 60 – 75 – 90 mm
HANDLEBAR Byte Alu Low Rise Oversize, 720 mm
SADDLE Selle Royal Sauris
TYRES Schwalbe Rapid Rob, 29”x2,25”
MOTOR Brushless Bosch 36 V, 250 W, on the bottom bracke
MAX TORQUE 75 Nm

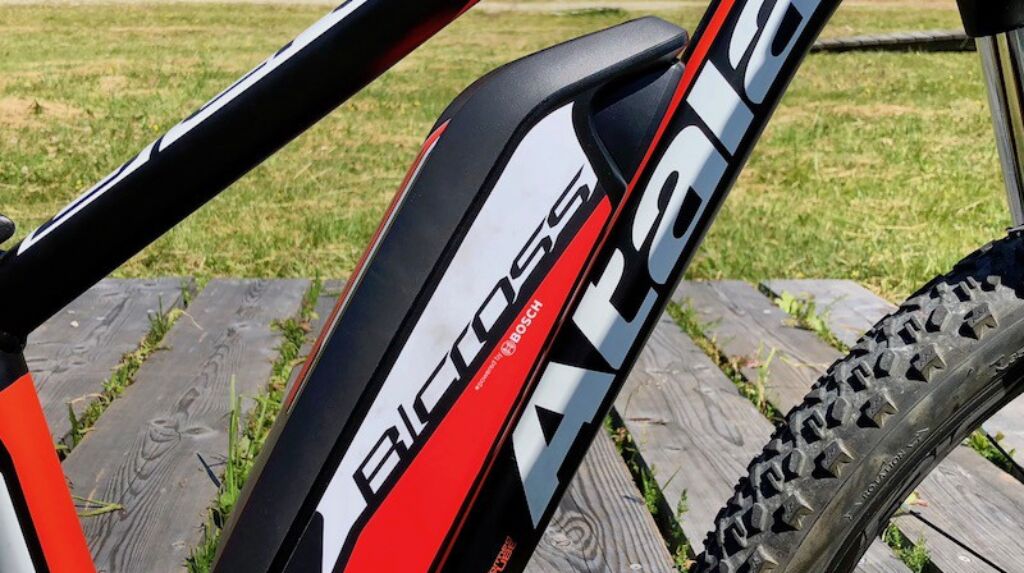

BATTERY Powerpack 400, frametype, weight 2,5 kg
RANGE Up to 175 km in Eco Up to 95 km in Tour Up to 75 km in Sport Up to 60 km in Turbo
CHARGE TIME up to 3,5 hours
MAX ASSISTENT SPEED 25 km/h
DISPLAY Purion
POWER Adjustable: 4 levels Eco: 50 % Tour: 120 % Sport: 210 % Turbo: 300 %
